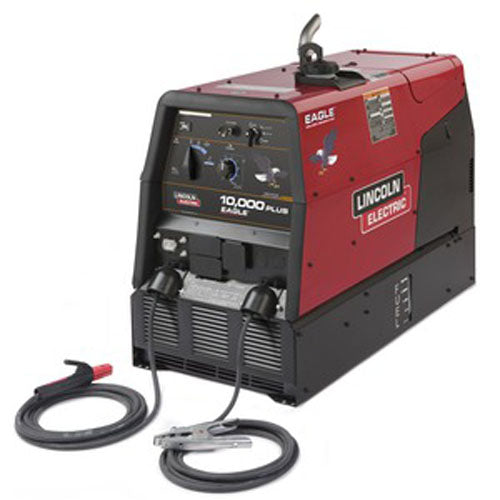

Lincoln Eagle 10,000 Plus Engine Driven Welder w/ Cover & Helmet Reconditioned

• Includes 20 ft. (6.0 m) of #2 electrode cable, electrode holder, 15 ft. (4.5 m) of #2 work cable and work clamp to get you started!
• Totally Enclosed Case
• Versatile DC Welding
• 10,500 Watts Surge Single-Phase AC Generator Power
• 22 HP Lincoln Gasoline Engine
• Large Lincoln brand Canvas Cover
• Auto Darkening Helmet Included.

 Processes

Stick Welding with included items.  TIG, MIG, Flux-Cored, & Gouging with accessories not included.

Make Work Fly with an Eagle™ 10,000 Plus!

A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Eagle™ 10,000 Plus does a variety of basic welding jobs. And with 10,500 watts of surge AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.

• Totally Enclosed Case

  • Engine is fully protected.
  • 3 service access doors.
  • Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
• Versatile DC Welding

  • Smooth DC welding output for a broad range of stick electrode types.
  • MIG, flux-cored and basic TIG welding in constant current mode (with optional equipment).⁽¹⁾
• Welding Accessories Included
  • 20 ft. (6.0 m) of #2 electrode cable
  • Electrode holder
  • 15 ft. (4.5 m) of #2 work cable and work clamp to get you started!
• 10,500 Watts Surge Single-Phase AC Generator Power
  • Surge for motor starting.
• 9,000 watts continuous power for generator, plasma cutter or inverter welder.
• Includes (4) 110V Power Outlets, (1) 50 Amp 220V Outlet.
• Lights, grinder, power tools.
• 22 HP Lincoln Gasoline Engine

  • 2 cylinder, 4 cycle overhead valve air-cooled design.
  • Oil drain extension for easy oil changes.
  • 12 gallon tank for extended run times.
  • Only 1.3 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
• Rugged Reliability

  • Welding and AC generator outputs rated at 104°F (40°C).

⁽¹⁾ A constant voltage (CV) power source is recommended for wire feeder applications. The across-the-arc Lincoln Electric LN-Series wire feeders may be used with a constant current (CC) power source, such as the Eagle™ 10,000 Plus, for non-critical applications where weld quality and deposition properties are not critical.
