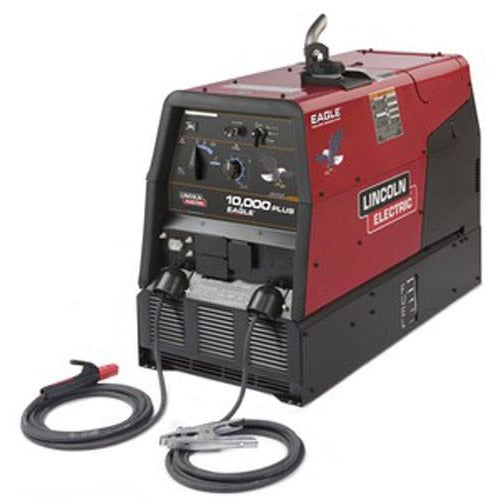

Lincoln Electric Eagle 10,000 Plus Engine Driven Welder w/ Cover & Helmet

Lincoln Electric Eagle 10,000 Plus Engine Driven Welder w/ Cover & Helmet

Regular price $ 4,850.00 USD
Regular price Sale price $ 4,850.00 USD
Sale Sold out
Shipping calculated at checkout.

The Lincoln Electric Eagle 10,000 Plus is ready to make your next job fly by! Lincoln part number K2343-4HC. This Lincoln engine driven welder is new with a 3-year manufacturer's warranty. Delivery time is currently 2 weeks.

Top Features

  • Includes 20 ft. (6.0 m) of #2 electrode cable, electrode holder, 15 ft. (4.5 m) of #2 work cable, and work clamp to get you started!
  • Totally Enclosed Case
  • Versatile DC Welding
  • 10,500 Watts Surge Single-Phase AC Generator Power
  • 22 HP Lincoln GV750 Gasoline Engine
  • Large Lincoln brand Canvas Cover
  • Lincoln Auto Darkening Helmet

 Processes

DC Stick Welding with included items.

Make Work Fly with a Lincoln Electric Eagle™ 10,000 Plus!



The Lincoln Electric Eagle 10,000 Plus Engine Driven Welder is a great choice for getting the job done! For construction contractors, maintenance crews, farmers, or ranchers, the Lincoln Eagle™ 10,000 Plus does a variety of basic welding jobs. With 10,500 watts of surge AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed), or emergency power.

  • Totally Enclosed Case
    • Engine is fully protected.
    • 3 service access doors.
    • Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
  • Versatile DC Welding
    • Smooth DC welding output for a broad range of stick electrode types.
    • MIG, flux-cored, and basic TIG welding in constant current mode (with optional equipment). (1)
  • Welding Accessories Included
    • 20 ft. (6.0 m) of #2 electrode cable
    • Electrode holder
    • 15 ft. (4.5 m) of #2 work cable and work clamp to get you started!
  • 10,500 Watts Surge Single-Phase AC Generator Power
    • Surge for motor starting.
    • 9,000 watts continuous power for generator, plasma cutter or inverter welder.
    • Includes (4) 110V Power Outlets, (1) 38 Amp 220V Outlet.
    • Lights, grinder, power tools.
  • 22 HP Lincoln GV750 Gasoline Engine
    • 2 cylinder, 4 cycle overhead valve air-cooled design.
    • Electric Start
    • 12V Battery
    • 410 Cold Cranking Amps
    • Manual Choke
    • 12 gallon tank for extended run times.

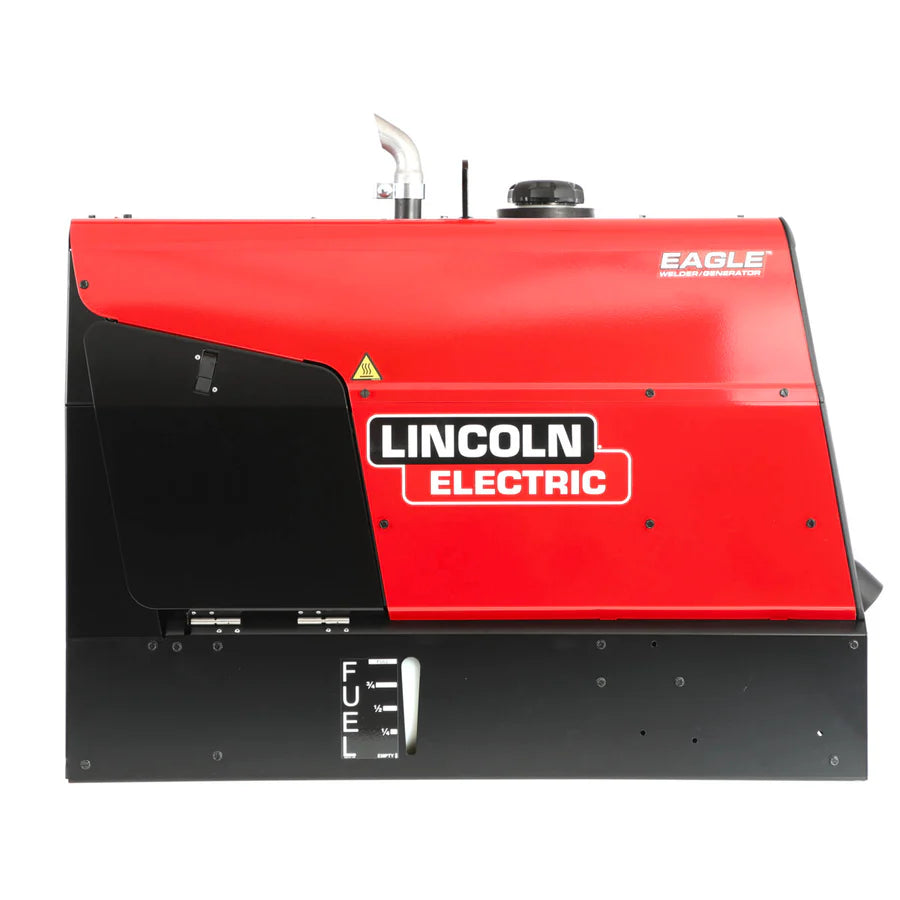

    • Only 1.5 gallons/hour at 210 amps DC, 3500 RPM. 100% duty cycle. Visual fuel level gauge on both sides of unit.
  • Rugged Reliability
    • Welding and AC generator outputs rated at 104°F (40°C).

(1) A constant voltage (CV) power source is recommended for wire feeder applications. The across-the-arc Lincoln Electric LN-Series wire feeders may be used with a constant current (CC) power source, such as the Lincoln Electric Eagle™ 10,000 Plus, for non-critical applications where weld quality and deposition properties are not critical.
